APPENDIX B: OFFSHORE WIND SPEEDS MODELLED IN 'STUDY OF OFFSHORE WIND ENERGY IN THE EC'

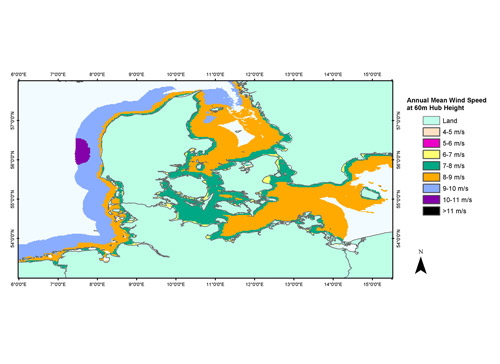

Figure B.1: Denmark and Germany

Figure B1: Denmark - Germany

Source: Matthies and Garrad (1993)

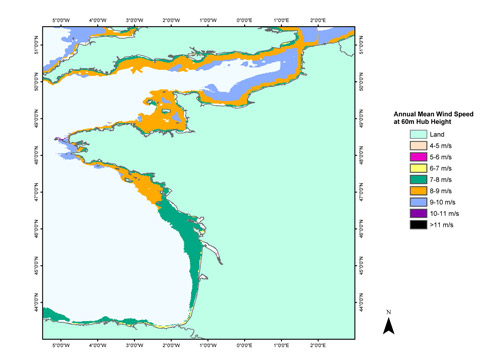

Figure B.2: France - Atlantic

Figure B2: France - Atlantic

Source: Matthies and Garrad (1993)

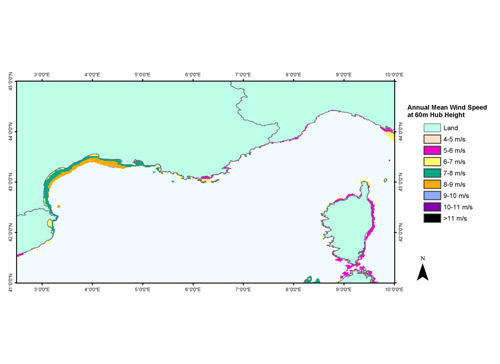

Figure B.3: France - Mediterranean

Figure B3: France - Mediterranean

Source: Matthies and Garrad (1993)

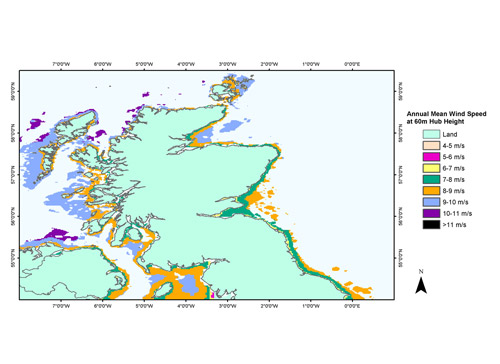

Figure B.4: Great Britain - North

Figure B4: Great Britain - North

Source: Matthies and Garrad (1993)

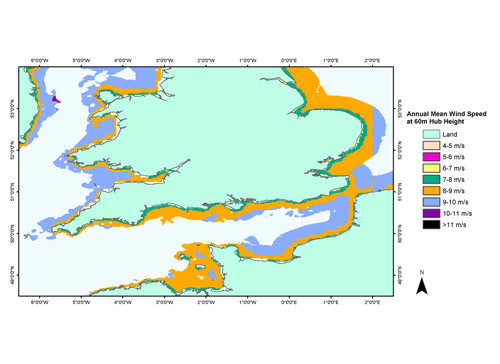

Figure B.5: Great Britain - South



Figure B5: Great Britain - South

Source: Matthies and Garrad (1993)

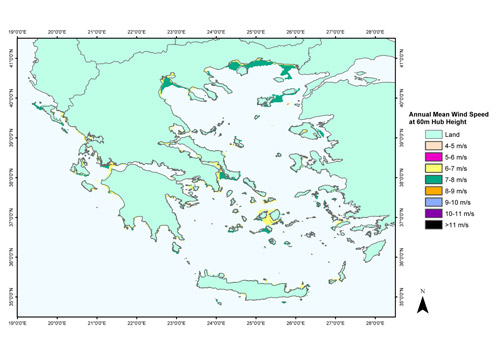

Figure B.6: Greece

Figure B6: Greece

Source: Matthies and Garrad (1993)

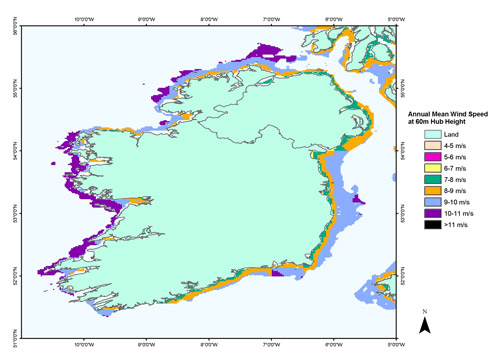

Figure B.7: Ireland

Figure B7: Ireland

Source: Matthies and Garrad (1993)

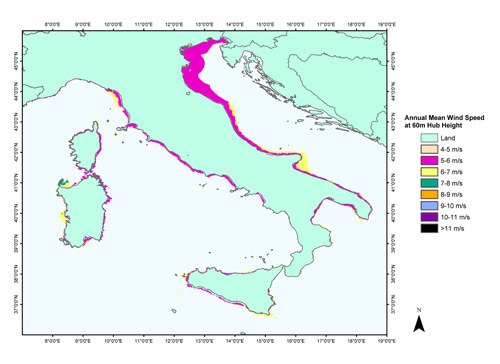

Figure B.8: Italy

Figure B8: Italy

Source: Matthies and Garrad (1993)

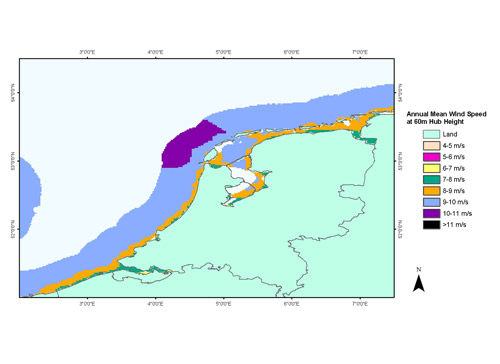

Figure B.9: The Netherlands and Belgium

Figure B9: Netherlands - Belgium

Source: Matthies and Garrad (1993)

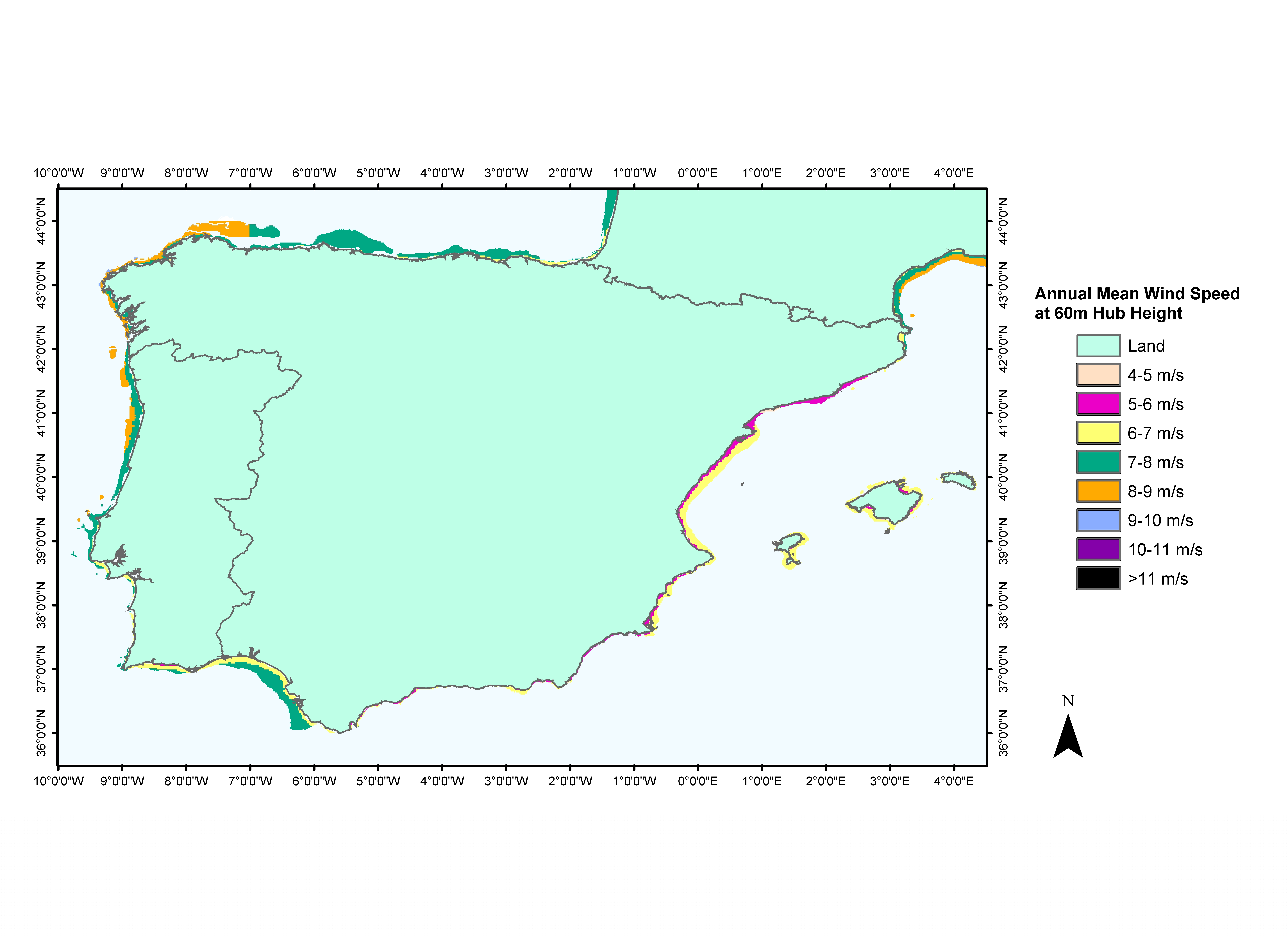

Figure B.10: Spain and Portugal

Source: Matthies and Garrad (1993)
