Avoided Emissions and External Cost for Different Wind Deployment Scenarios in the EU-27 Member States in 2020

The previous section presented 'real' life in 2007. In the following section different scenarios on the portfolio of electricity generation in the EU-27 Member States in 2020 are discussed and, subsequently, the same exercises are conducted in terms of:

• Determination of the share of fossil fuel-based electricity generation and corresponding emissions in each of the EU-27 Member States;
• Determination of the amount of fossil fuel-based electricity generation and corresponding emissions replaceable/avoidable by wind (and other renewable technologies) in each of the EU-27 Member States;
• Determination of the replaced/avoided emissions by wind energy in the three EWEA wind generation scenarios; and
• Determination of the external costs of fossil fuel-based electricity generation and, subsequently, avoided external costs by wind generation in the three EWEA wind generation scenarios.

Before presenting the empirical results in subsequent sections, there are at least the following three important notes worth mentioning:

1. The business-as-usual scenarios in the portfolio of conventional electricity generation are based on the official documents of the European Commission (Eurelectric, 2006; Capros et al., 2008).
2. In general, the efficiency of new plants within each of the types of fossil fuel-based electricity generation technologies improves with time and, therefore, the specific emissions for 2020 decrease compared to 2007.
3. Due to expected electricity demand increase, the amount of total fossil fuel-based electricity generation in 2020 is supposed to be higher than in 2007 in almost all EU Member States (but specific emissions per power plant technology - see above - will be lower). However, the significant shares of wind generation in the different EWEA scenarios are expected to be even greater (see the subsequent sections in detail).

FOSSIL FUEL-BASED ELECTRICITY GENERATION AND EMISSIONS IN 2020

Figure 5.8: Fossil Fuel-Based Electricity Generation in the EU-27 Member States in 2020.

Source: Auer et al. (2007)

Figure 5.8 presents fossil fuel-based electricity generation in the EU-27 Member States in 2020 and Figure 5.9 the corresponding specific average emissions (CO₂, SO₂, NO_x).



Figure 5.9: Specific Average Emissions (CO₂, SO₂, NO_x) from Fuel Based Electricity Generation in the EU-27 Member States in 2020

Source: Auer et al. (2007)



Figure 5.10 presents the fossil-fuel based electricity generation replaceable/avoidable by wind (and other renewable electricity generation) in the EU-27 Member States in 2020 and Figure 5.11 the corresponding amount of total avoidable emissions (CO₂, SO₂, NO_x).

Figure 5.10: Fossil Fuel-Based Electricity Generation Replaceable/Avoidable by Wind (and other Renewable Electricity Generation Technologies) in the EU-27 Member States in 2020

Source: Auer et al. (2007)





Figure 5.11: Total Emissions (CO₂, SO₂, NO_x) Replaceable/Avoidable by Wind (and other Renewable Electricity Generation Technologies) in the EU-27 Member States in 2020

Source: Auer et al. (2007)



BREAKDOWN OF EWEA'S WIND GENERATION SCENARIOS FOR 2020 (BY EU MEMBER STATE)

In order to be able to calculate the amount of replaced/avoided fossil fuel-based electricity generation by wind energy in the EU-27 Member States in 2020, wind penetration scenarios for the year 2020 are necessary. Figure 5.12 presents EWEA's three wind generation scenarios for the EU-27 on a separate - EU Member State - level. The breakdown of EWEA's three wind generation scenarios on EU Member State level is mainly based on comprehensive modelling and sensitivity analyses with the simulation software model GreenNet-Europe. GreenNet-Europe models show cost deployment of renewable electricity generation technologies (wind in particular) at EU Member State level up to 2020 and 2030, taking into account several different country-specific potentials and cost of renewable (wind) generation, different renewable-promotion instruments and a variety of other country-specific as well as general parameters and settings. The results of the breakdown of EWEA's three wind generation scenarios have also been cross-checked with other existing publications (for example Resch et al., 2008 and Capros et al., 2008).



Figure 5.12: Annual Wind Generation (TWh/yr) in Each of the EU-27 Member States According to EWEA's Three Wind Generation Scenarios in 2020.

Source: Auer et al. (2007)

AVOIDED EMISSIONS (OF FOSSIL FUEL-BASED ELECTRICITY GENERATION) IN THE BREAKDOWN OF EWEA'S WIND GENERATION SCENARIOS FOR 2020

In Figures 5.13-5.15, the total avoided emissions (CO₂, SO₂, NO_x) by wind generation are presented for EWEA's three wind generation scenarios in each of the EU-27 Member States in 2020.

Figure 5.13: Total Emissions (CO₂, SO₂, NO_x) from Fossil Fuel-Based Electricity Generation Avoided by Wind Energy According to EWEA's Reference Scenario in the EU-27 Member States in 2020

Source: Auer et al. (2007)

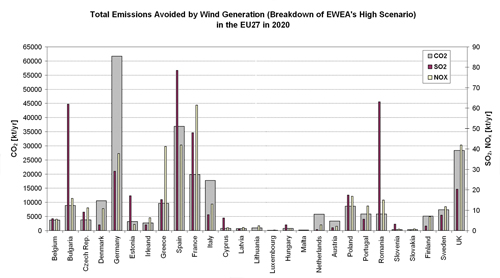

Figure 5.14: Total Emissions (CO₂, SO₂, NO_x) from Fossil Fuel-Based Electricity Generation Avoided by Wind Energy According to EWEA's High Scenario in the EU-27 Member States in 2020

Source: Auer et al. (2007)



Figure 5.15: Total Emissions (CO₂, SO₂, NO_x) from Fossil Fuel-Based Electricity Generation Avoided by Wind Energy According to EWEA's Low Wind Scenario in the EU-27 Member States in 2020

Source: Auer et al. (2007)

EXTERNAL COSTS OF FOSSIL FUEL-BASED ELECTRICITY GENERATION AND AVOIDED EXTERNAL COSTS IN THE BREAKDOWN OF EWEA'S WIND GENERATION SCENARIOS FOR 2020

Figure 5.16 presents the results on the calculation of the external costs of conventional fossil fuel-based electricity generation in each of the EU-27 Member States in 2020 (high/average/low values), based on the same methodology used for 2007 (see Figure 5.5 in detail). From this, we finally determine the avoided external costs of wind generation in 2020 in Figures 5.17-5.22 (according to EWEA's three wind generation scenarios).

It is important to note that the specific emissions of fossil fuel-based electricity generation technologies in 2020 are less than in 2007, and also the specific external costs in 2020 (Figure 5.16) are, on average, less than in 2007 (see Figure 5.5). In general, the picture for the year 2020 is similar to 2007 - in other words there is still a noticeable difference between the different EU-27 Member States. Bulgaria, Slovenia and Estonia are those Member States with the highest external costs of fossil fuel-based electricity generation (average values around 20c€₂₀₀₇/kWh), but Romania and Greece reach nearly 15c€₂₀₀₇/kWh (average values for external costs). On the contrary, there are also a significant number of EU Member States with external costs below 5c€₂₀₀₇/kWh (average values of external costs).



Figure 5.16: Bandwidth of Specific External Costs of Fossil Fuel-Based Electricity Generation in the EU-27 Member States in 2020

Source: Auer et al. (2007)

By combining the avoidable external costs of fossil fuel-based electricity generation (Figure 5.16) with the amount of electricity produced by wind energy (Figure 5.12), the total amount of avoided external costs can be calculated for the year 2020. Subsequent figures present the results of EWEA's three wind generation scenarios in each of the EU-27 Member States for 2020.

Figure 5.17: Bandwidth of Avoided External Costs of Fossil Fuel-Based Electricity Generation According to EWEA's Reference Scenario in the EU-27 Member States in 2020

Source: Auer et al. (2007)

The corresponding total avoided external costs (using the values of the average specific external costs of each of the EU-27 Member States in Figure 5.17) are presented in Figure 5.18. On an aggregated EU-27 level, the total avoided external costs by wind generation in EWEA's reference scenario in 2020 is around €32 billion per year.

Figure 5.18: Avoided External Costs by Wind Generation According to EWEA's Reference Scenario in Each of the EU-27 Member States in 2020 (A Total of €32 Billion per year).

Source: Auer et al. (2007)

Figure 5.19: Bandwidth of Avoided External Costs (€m2007/yr) of Fossil Fuel-Based Electricity Generation according to EWEA's High Scenario in the EU-27 Member States in 2020



Source: Auer et al. (2007)



Figure 5.20: Avoided External Costs by Wind Generation According to EWEA's High Scenario in Each of the EU-27 Member States in 2020 (A Total of €39 Billion per year).

Source: Auer et al. (2007)

Figure 5.21: Bandwidth of Avoided External Costs of Fossil Fuel-Based Electricity Generation According to EWEA's Low Scenario in the EU-27 Member States in 2020

Source: Auer et al. (2007)



Figure 5.22: Avoided External Costs by Wind Generation According to EWEA's Low Scenario in Each of the EU-27 Member States in 2020 (A Total of €25 Billion per year).

Source: Auer et al. (2007)
