APPENDIX F: CURRENT NATIONAL AND EUROPEAN R&D


The Main EU-Funded Projects


In 2006 more than 20 R&D projects were running with the support of FP6 and FP7 (the Framework Programmes are the main EU-wide tool for supporting strategic research areas).


The management and monitoring of projects is divided between two European Commission Directorate-Generals: the Directorate-General for Research (DG Research), for projects with medium- to long-term impact, and the Directorate-General for Transport and Energy (DG TREN), for demonstration projects with short- to medium-term impact on the market.


Private Initiatives



EOLIA (SPAIN)



The government-funded programme CENIT (the National Strategic Consortia for Technological Research) is focused on research activities. The target of the CENIT funding programme is to support large public–private consortiums and is aimed at overcoming strategic issues. In this framework, the private initiative EOLIA was launched in 2007.


The purpose of EOLIA is to carry out the research needed for the new technologies for offshore wind in deep waters. This covers a broad range of topics, from support structures, cables and moorings to project development (environmental impact assessment, wind resource and planning). It includes future applications and synergies (desalination and aquiculture).


The project’s total budget of €34 million is being supported with €17 million from the Centre for the Development of Industrial Technology (CDTI). It started in 2007 and will be completed in 2010.


Several companies from the Acciona Group are participating in EOLIA (energy, wind turbines, desalination, infrastructure, engineering), together with major partners such as ABB, Construcciones Navales del Norte Shipyard, General Cable, Ingeteam Group, Ormazabal
and Vicinay, smaller partners such as Tinamenor and IMATIA, and the participation of research centres such as the National Renewable Energy Centre (CENER).


International Networks


THE EUROPEAN ACADEMY OF WIND ENERGY (EAWE)


The EAWE is a cooperation initiative on wind energy R&D made up of research institutes and universities in seven countries: Germany, Denmark, Greece, The Netherlands, Spain, the UK and Norway. The Academy was founded to formulate and execute shared R&D projects and to coordinate high-quality scientific research and education on wind energy at a European level. The core group is made up of 25 bodies, representing seven EU countries and more than 80 per cent of long-term research activity in the field of wind energy.


The activities of the EAWE are split into:


  • Integration activities such as PhD exchanges, exchange of scientists and the exploitation of existing research infrastructures;
  • Activities for the spreading of excellence, through the development of international training courses, dissemination of knowledge, support to SMEs and standardisation; and
  • Long-term research activities (see below).


Table F.1 lists thematic areas and topics that have been identifi ed as fi rst priority long-term R&D issues for EAWE’s joint programme of activities.



THE EUROPEAN RENEWABLE ENERGY CENTRES AGENCY


The European Renewable Energy Centres Agency (EUREC) was established as a European economic interest grouping in 1991 to strengthen and rationalise the European research, demonstration and development efforts in all renewable energy technologies. As an independent, member-based association, it incorporates 48 prominent research groups from all over Europe.


EUREC members’ research fields include solar buildings, wind, photovoltaics, biomass, small hydro, solar thermal power stations, ocean energy, solar chemistry and solar materials, hybrid systems, developing countries, and the integration of renewable energy into the energy infrastructure.



Table F1: Priority Long-Term R&D Issues for EAWE's Joint Programme of Activities


Long-term
wind forecasting
  • Wind resources
  • Micrositing in complex terrain
  • Annual energy yield
  • Design wind conditions (turbulence, shear, gusts, extreme winds) offshore, onshore and in complex terrain
Wind turbine
external conditions
  • Characteristics of wind regime and waves
  • Atmospheric flow and turbulence
  • Interaction of boundary layer and large wind farms
  • Prediction of exceptional events
Wind turbine technology
  • Aerodynamics, aeroelasticity and aeroacoustics
  • Electrical generators, power electronics and control ·Loads, safety and reliability
  • Materials, structural design and composite structures
  • Fracture mechanisms
  • Material characterisation and life cycle analysis
  • New wind turbine concepts
Systems integration
  • Grid connection and power quality issues
  • Short-term power prediction
  • Wind farm and cluster management and control
  • Condition monitoring and maintenance on demand
  • New storage, transmission and power compensation systems
Integration
into the energy economy
  • Integration of wind power into power plant scheduling and electricity trading
  • Profile-based power output and virtual power plants
  • Trans-national and trans-continental supply structures
  • Control of distributed energy systems



THE EUROPEAN WIND ENERGY TECHNOLOGY PLATFORM (TPWind)


TPWind’s task is to identify and prioritise areas for increased innovation and new and existing R&D tasks. Its primary objective is to make overall reductions in the social, environmental and technological costs of wind energy. This is reflected in TPWind’s structure, where the issues raised by the working groups (see below) are focused on areas where technological improvement leads to significant cost reductions.



This helps to achieve the EU’s renewable electricity production targets. The Platform develops coherent recommendations, with specific tasks, approaches, participants and the necessary infrastructure. These are given in the context of private R&D and EU and Member State programmes, such as the EU’s FP7.


TPWind is a network of more than 150 members, representing the whole industry from all over the EU. It is split into seven technical working groups, covering the issues of:


1. Wind conditions;
2. Wind power systems;
3. Wind energy integration;
4. Offshore deployment and operations;
5. Market and economics;
6. Policy and environment; and
7. R&D financing.


It comprises a Mirror Group, which includes representatives of the Member States, and a Steering Committee representing the whole industry. Detailed information is available at www.windplatform.eu.


GEO – THE WIND ENERGY COMMUNITY OF PRACTICE


The Wind Energy Working Group is part of the Energy Community of Practice, which is a section of the Group on Earth Observation (GEO). Under the auspices of the G8, GEO is an international initiative, aiming to establish the Global Earth Observation System of Systems (GEOSS) within the next ten years.


The Wind Energy Working Group directly contributes to the goals of one of the nine societal benefit areas of GEOSS, the energy area, for the improved management of energy resources. Specifically:


GEOSS outcomes in the energy area will support environmentally responsible and equitable energy management; better matching of supply and demand of energy; reduction of risks to energy infrastructure; more accurate inventories of greenhouse gases and pollutants; and a better understanding of renewable energy potential. (GEOSS 10-Year Implementation Plan, Section 4.1.3)


THE INTERNATIONAL ELECTROTECHNICAL COMMISSION (IEC)


The IEC, through its Technical Committee 88, is responsible for the development of standards relevant to wind turbine generator systems. It has produced standards for design requirements, power curve measurement, power quality control, rotor blade testing, lightning protection, acoustic noise measurement techniques, measurement of mechanical loads, and communications for monitoring and control of wind power plants.


Its current work programme includes both standards and design requirements for offshore wind turbines, for gearboxes and for wind farm power performance testing.


THE INTERNATIONAL MEASURING NETWORK OF WIND ENERGY INSTITUTES (MEASNET)


MEASNET is a cooperation of institutes that are engaged in the field of wind energy and want to ensure high-quality measurements and the uniform interpretation of standards and recommendations and obtain interchangeable results. The members have established an organisational structure for MEASNET, and they periodically perform mutual quality assessments of their harmonised measurements and evaluations.


This network was founded in 1997. It now has ten full members and five associate members.



THE EUROPEAN COMMITTEE FOR ELECTROTECHNICAL STANDARDIZATION (CENELEC)


CENELEC was created in 1973 as a result of the merging of two previous European organisations: CENELCOM and CENEL. Nowadays, CENELEC is composed of the National Electrotechnical Committees of 30 European countries. In addition, eight National Committees from neighbouring countries participate in CENELEC’s work with affiliate status.


CENELEC’s mission is to prepare voluntary electrotechnical standards that will help develop the Single European Market/European Economic Area for electrical and electronic goods and services, removing barriers to trade, creating new markets and cutting compliance costs.


THE INTERNATIONAL ENERGY AGENCY (IEA)


In its report ‘Long-term research and development needs for wind energy for the time frame 2000 to 2020’ (IEA, 2001), the Executive Committee of the IEA’s Implementing Agreement for Wind Energy stated that continued R&D is essential for providing the reductions in cost and uncertainty that are necessary for reaching the anticipated deployment levels of wind energy. In the mid-term, the report suggests the following R&D areas of major importance for the future deployment of wind energy: forecasting techniques, grid integration, public attitudes and visual impact. In the long term, the Implementing Agreement sees R&D focusing on closer interaction of wind turbines and their infrastructure as a priority.


Since its inception, the Executive Committee of the Implementing Agreement has been involved in a wide range of R&D activities. The current research and development activities are organised into seven tasks (referred to as ‘annexes’), giving an insight into its perception of current R&D priorities:


  • Annex XI: Base technology information exchange. This refers to coordinated activities and information exchange in two areas: i) the development of recommended practices for wind turbine testing and evaluation, including noise emissions and cup anemometry, and ii) joint actions in specific research areas such as turbine aerodynamics, turbine fatigue, wind characteristics, offshore wind systems and forecasting techniques.
  • Annex XIX: Wind energy in cold climates. The objectives here include i) gathering and sharing information on wind turbines operating in cold climates, ii) establishing a formula for site classification, aligning meteorological conditions with local needs, and iii) monitoring the reliability and availability of standard and adapted turbine technology, as well as the development of guidelines.
  • Annex XX: HAWT aerodynamics and models from wind tunnel tests and measurements. The main objective is to gather high-quality data on aerodynamic and structural loads for HAWTs, to model their causes and to predict their occurrence in fullscale machines.
  • Annex XXI: Building dynamic models of wind farms for power system studies that aim to assist in the planning and design of wind farms. These studies develop models for use in combination with software packages for the simulation and analysis of power system stability.
  • Annex XXIII: Offshore wind energy technology development. The aim is to identify and conduct R&D activities towards the reduction of costs and uncertainties and to identify and organise joint research tasks between interested countries.
  • Annex XXIV: Integration of wind and hydropower systems into the electricity grid. The goal is to identify feasible wind/hydro system confi gurations, limitations and opportunities, involving an analysis of the integration of wind energy into grids fed by a significant proportion of hydropower, and opportunities for pumped hydro storage.
  • Annex XXV: The ‘design and operation of power systems with large amounts of wind power production’ has recently been added as an additional task.


THE OFFSHORE WIND ENERGY NETWORK (OWE)




OWE is an independent source of information for professionals working in the field of offshore wind energy. It is also a gateway to several research projects on offshore wind energy. It provides a survey of the existing offshore wind farms, and information on existing offshore-related research projects and networks (for example CA-OWEE, COD and [email protected]).


National Networks



DENMARK


Megavind


The Megavind partnership is the result of a government initiative for the development of environmentally effective wind technology. It addresses the challenges Denmark is facing in order to maintain its position as an internationally leading centre of competence within the field of wind power.


The partnership is the catalyst and initiator of a strengthened testing, demonstration and research strategy within the field of wind power in Denmark. It aims to think innovatively in regard to validation, testing and demonstration within wind power technology and the integration of wind power into the entire energy system. It therefore recommends creating an accumulated strategy for testing and demonstrating:


  • Components and turbine parts;
  • Wind turbines and wind farms; and
  • Wind power plants in the energy system.


Long-term university research and education in general should make a priority of the fundamental or generic technologies that are part of the development of wind turbines and wind power plants. These include:


  • Turbine design and construction;
  • Blades – aerodynamics, structural design and materials;
  • Wind loads and siting;
  • The integration of wind power into the energy system; and
  • Offshore technology.


Megavind’s recommendations will function as a reference for strategic research within wind power in the coming years, thus becoming the valid research strategy for wind power in Denmark.


GERMANY


The Centre of Excellence for Wind Energy (CE Wind) The research network CE Wind, founded in 2005, includes the universities of Schleswig-Holstein. Through scientific research, CE Wind deals with fundamental questions relating to the wind turbines of the future, wind parks and the corresponding infrastructure. CE Wind looks at the main issues regarding grid connection and integration, the design of rotor blades, generators, towers and foundations, operation monitoring and maintenance, impact on the environment of turbines in the multi-megawatt class, and operation in extreme local conditions.


ForWind


ForWind was founded in August 2003. It combines the interdisciplinary competencies of the universities of Oldenburg and Hanover and of its associated members, the universities of Stuttgart and Essen, in the field of wind power utilisation.


ForWind bridges basic research at the universities with demands from the industry for applied innovative wind energy conversion techniques. The research per-formed ranges from estimation of the wind resource to the grid integration of wind power. The research priorities are:


  • Wind resources and offshore meteorology;
  • Aerodynamics of rotor blades;
  • Turbulence and gusts;
  • Wave and wake loads;
  • Analysis of Scour Automatic System and load identification;
  • Material fatigue and lifetime analysis;
  • Material models for composite rotor blades;
  • Structural health monitoring for blades, tower and the converting system;
  • Hydro-noise reduction;
  • Interaction of ground and foundation structure;
  • Grouted joints for offshore constructions;
  • Electrical generator power system simulation and analysis of power quality; and
  • Grid connection of large-scale wind farms.


Research at Alpha Ventus (RAVE)


To help launch the deployment of offshore wind in German waters, the German Federal Ministry for the Environment (BMU) will support the offshore test wind farm Alpha Ventus in the North Sea with a research budget of about €50 million over the next few years. This research initiative was named RAVE – Research at Alpha Ventus – and consists of a variety of projects connected with the installation and operation of Alpha Ventus. The different project consortia in RAVE are made up of most of the offshore research groups in Germany. RAVE is represented and coordinated by the ISET institute in Kassel.


In order to provide all participating research projects with detailed data, the test site will be equipped with extensive measurement instrumentation. The overall objective of the research initiative is to reduce the costs of offshore wind energy deployment in deep water. The institutes and companies participating in the RAVE initiative have prepared projects on the following topics so far:


  • Obtaining joint measurements and data management;
  • Analysis of loads and modelling, and further development of the different components of offshore wind turbines;
  • Loads at offshore foundations and structures;
  • Monitoring of the offshore wind energy deployment in Germany – ‘Offshore WMEP’;
  • Grid integration of offshore wind energy;
  • Further development of Lidar wind measuring techniques, analysis of external conditions and wakes;
  • Measurement of the operating noises and modelling of the sound propagation between tower and water; and
  • Environmental research.


SPAIN


The Spanish Wind Energy Technology Platform (REOLTEC)


REOLTEC (Techno-Scientific Wind Energy Network) was created in July 2005 with the aim of integrating and coordinating actions focused on research, development and innovation activities in the field of wind energy in Spain. In the last two years, the network has created working groups focused on different topics related to wind energy: wind turbines, applications, resource and siting, offshore, grid integration, certification, and social impact.


REOLTEC has the full support of AEE (the Spanish Wind Energy association). It is made up of the main players in the wind energy companies, research centres, universities and government agencies in Spain. This gives the network a wide-ranging point of view on the best path to follow in the coming years.


THE NETHERLANDS


INNWIND


The long-term R&D programme of the INNWIND consortium is funded by the government of The Netherlands. The budget is ¤1.5 million per year. The consortium partners are:


  • The Energy Research Centre of The Netherlands;
  • Delft University of Technology; and
  • The Knowledge Centre WMC (Wind Turbine Materials and Constructions).


The aim of the programme is to develop expertise, concepts, computer models and material databases that will be made available and applicable through a new generation of software tools. This is to enable the construction of large, robust, reliable, low-maintenance and cost-effective offshore wind turbines that are readily available for developers.


The INNWIND R&D priority areas are:


  • Concepts and components;
  • Aeroelasticity;
  • Materials and constructions;
  • Model development and realisation of an integrated modular design tool; and
  • Design guidelines.


[email protected]


[email protected] is a body funded by the Government of The Netherlands. It focuses on the national target of 6 GW offshore for 2020. The total budget is €26 million for five years. The [email protected] research priorities are:


Integration of wind power, and scenarios for its development;


  • Offshore wind power generation;
  • Spatial planning and environment;
  • Energy transportation and distribution;
  • The energy market and financing;
  • Installation, exploitation, maintenance and dismantling; and
  • Training, education and dissemination of knowledge.


THE UK




Collaborative Offshore Wind Farm Research into the Environment (COWRIE)


COWRIE is an independent company set up to raise awareness and understanding of the potential environmental impacts of the UK’s offshore wind farm programme. Identified research areas are:


  • Birds and benthos;
  • Electromagnetic fields;
  • Marine bird survey methodology;
  • Remote techniques; and
  • Underwater noise and vibration.


The Offshore Wind Energy Network (OWEN)


OWEN is a joint collaboration between industry and researchers. It promotes research on all issues connected with the development of the UK offshore wind energy resource (for example shallow water foundation design, submarine cabling, power systems, product reliability and impacts on the coastal zone).


The main aims of OWEN are:


  • To identify, in detail, the research required by the UK wind energy industry so that the offshore wind energy resource can be developed quickly, effectively and efficiently;
  • To provide a forum where specific research or development issues can be discussed;
  • To ensure that regular reports of ongoing research projects are disseminated to relevant academic and industrial partners; and
  • To ensure that the final results of any research project are widely publicised through tools such as conferences, newsletters and journals, whilst remaining aware of the need to preserve commercial confidentiality in the relevant cases.



The UK Energy Research Centre (UKERC)


The UK Energy Research Centre’s mission is to be the UK’s pre-eminent centre of research and source of authoritative information and leadership on sustainable energy systems.


UKERC undertakes world-class research addressing whole-system aspects of energy supply and use, while developing and maintaining ways of enabling cohesive research on energy. Research themes include:


  • Demand reduction;
  • Future sources of energy;
  • Energy infrastructure and supply;
  • Energy systems and modelling;
    Environmental sustainability; and
    Materials for advanced energy systems.


ITI Energy


ITI Energy is a private company, part of ITI Scotland Ltd. Its aims are the funding and managing of early stage technology development. It benefits from a longterm direct funding commitment from the Scottish Government through Scottish Enterprise. The available budget is £150 million over ten years. The ITI Energy programme includes:


  • Battery management systems;
  • Composite pipeline structure;
  • Hydrogen handling materials;
  • Interior surface coating;
  • Large-scale power storage;
  • Rechargeable batteries;
  • Wind turbine access systems;
  • Active power networks; and
  • Offshore renewables programmes.


The Energy Technologies Institute (ETI)


The ETI is an energy, research and development institute that is planned to begin operating in the UK in 2008. It is being set up by the UK government to ‘accelerate the development of secure, reliable and cost-effective low-carbon energy technologies towards commercial deployment’. This new institute is supported by a number of companies as a 50:50 public–private partnership. The institute is expected to work with a range of academic and commercial bodies.


Conclusion




This large number of networks shows the willingness of the research sector to coordinate its efforts. It demonstrates the need for research, and the quest for improved efficiency through knowledge-sharing. Building a research network is a way to strengthen the whole wind energy community, and to improve its attractiveness for the private sector, which can take advantage of a high level of expertise and information. The European Wind Energy Technology Platform is the instrument that brings together institutes, research networks and private companies in order to set the research and market development priorities for the wind energy sector up to 2030.


Special Focus: Design Software for Wind Turbines


Currently used design tools are only partially suitable for the reliable design of very large wind turbines, and have only been validated and verified by means of measurements on what are now ‘medium size’ machines. Some physical properties that are irrelevant in small and medium-sized turbines cannot be neglected in the design of large, multi-megawatt turbines.


It is difficult to define for these machines a clear upper limit to which existing design tools can be applied. However, it is generally acknowledged by experts that the design risks increase considerably for machines with rotors of over around 125 m in diameter.


For this reason, new design tools are needed, supplemented with new features that take into account such issues as extreme blade deflections and wave loading of support structures in the case of offshore turbines. Such new tools will be essential if a new generation of wind turbines is to be designed and manufactured in a cost-effective way.


Moreover, in the case of offshore and complex or forested terrains, large uncertainties remain on the evaluation of local wind resources and loads. At this stage, advanced flow modelling for wind loads and resources has still not been verified and validated at a satisfactory level. These uncertainties on loadings should be taken into account in the design process. High-quality design tools reduce the need for elaborating and performing expensive testing of prototypes, reduce the time required to market innovative concepts, and provide manufacturers with a competitive advantage. The probability of failure of wind turbines newly introduced to the market will also reduce, providing financiers and end users with a lower risk profile, less uncertainty and consequently lower electricity costs to the consumer.


One of the key challenges in developing design tools suitable for very large wind turbines is to understand and model aeroelastic phenomena. Figure F.1 gives an impression of the many dynamic external forces that act on wind turbines and the many ways the wind turbine structure may be distorted and may vibrate.

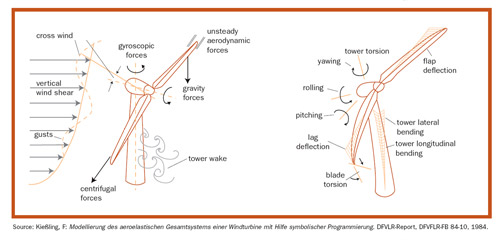

On the left, all the external dynamic forces that expose a turbine to extreme fatigue loading are indicated. On the right the various vibration and deflection modes of a wind turbine can be seen.



Figure F.1: Modelling of the Complete Aeroelastic System of a wind Turbine Using Symbolic Programming



Source: Kießling F, Modellierung des aeroelastischen Gesamtsystems einer Windturbine mit Hilfe symbolischer Programmierung. DFVLR-Report, DFVFLR-FB 84-10, 1984.

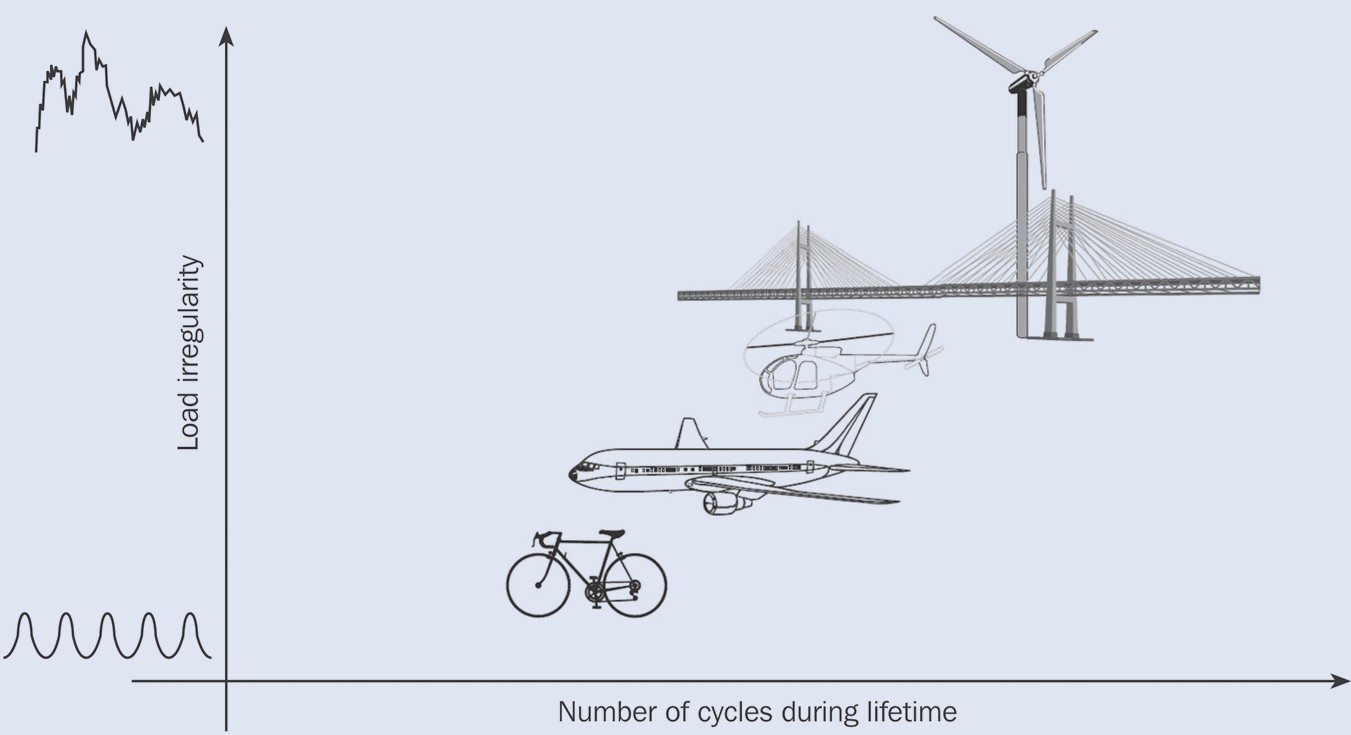

From the dynamic point of view, a wind turbine is a complex structure to design reliably for a given service lifetime.


In fact, the fatigue loading of a wind turbine is more severe than that experienced by helicopters, aircraft wings and car engines. The reason is not only the magnitude of the forces but also the number of load cycles that the structure has to withstand during its lifetime of 20 or more years (see Figure F.2).



Figure F.2: The Fatigue Loading of a Wind Turbine During its Lifetime is Large Compared to, for Example, Bridges, Helicopters, Aeroplanes and Bicycles



Source: WMC (TU Delft-ECN)


The larger the wind turbine becomes, the more extreme the fatigue loading becomes. Thus, system identification and inverse methods for providing the loads under real conditions are required.


Computational fluid dynamics (CFD) tools are currently being developed into the design codes of the future. Large-scale wind turbines can be equipped with sensors that record dynamic behaviour. Once developed, experimental verification for virtually all new design tools needs to be carried out, taking into account external flow conditions.

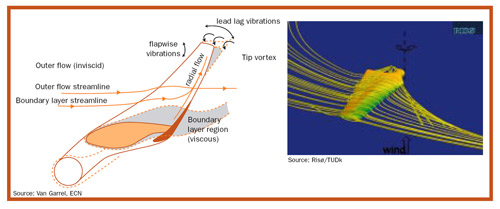

Figure F.3 illustrates the complexity of rotor flow. A number of numerical codes exist to analyse and design components and subsystems such as drive trains, rotor blades, drive train dynamics and tower dynamics.



Figure F.3: Sketch of Three-Dimensional Flow, Stall-Induced Vibrations and Centrifugal Effects on Flow



Source: Van Garrel, ECN; Risø DTU/TUDk


Currently, different design packages are not fully compatible with each other. It is therefore not possible to consider the system as a whole in the design phase. In terms of system optimisation, this implies that partial optimisation is performed on subsystems. This local optimisation is unlikely to be equivalent to the result of a global approach to optimisation.


Integral design methods include sub-design routines such as those for blades, power electronic systems, mechanical transmission, support structures and transport, and installation loads. These methods should be thoroughly verified during their development and introduced into the standard design and certification processes.


Through its dedicated work package, ‘Integral design approaches and standards’, the current UpWind project will bring solutions to this specific issue. Many of the elements necessary for an integral design base are available. However, existing knowledge is not fully applied. Future research should therefore focus not only on improving the methodology, but also on improving wind turbine manufacturers’, component manufacturers’ and certification bodies’ access to the know-how.


The interaction between flow and blade deformation is very complex. Three-dimensional aspects (tip vortices), axial flow, flow detachment (stall) and flow induced vibrations all have to be taken into account in order to guarantee stable operation of the blade and accurate calculation of its lifetime. CFD is likely to be used in the future for detailed flow calculations as the computing time is reduced and the non-linear effects are better understood and modelled. The picture on the right in Figure F.3 shows the result of a CFD calculation of the flow around a rotor blade. The future vision is that integral design of a wind turbine will be able to be carried out so reliably that no extensive field tests will be needed before market introduction.
